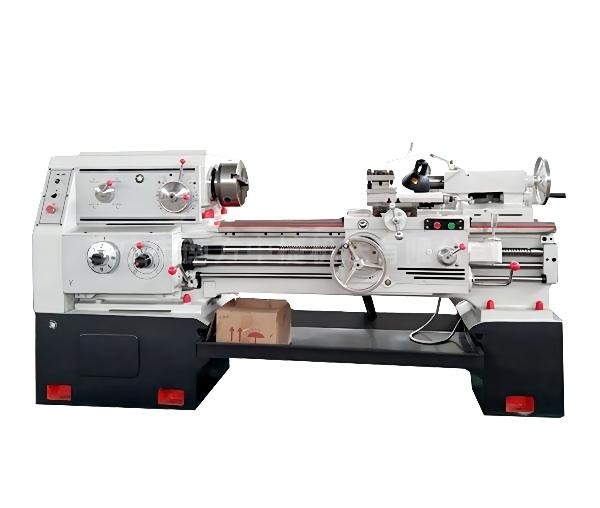

Normale Gap-de Machine Handca6240 Metaal van de Beddraaibank het Draaien Machine
Productgegevens
| Productnaam: | CA6240 handdraaibank | Max. schommelingsdiameter over bed.: | 400mm |
|---|---|---|---|
| Max. schommelingsdiameter over vervoer: | 220mm | Max. schommeling in hiaat: | 630mm |
| Bedbreedte: | 400mm | Max. werkstuklengte: | 1000mm |
| Max. draaiende lengte: | 900mm | De as droeg diameter: | 52mm |
| Markeren |
De handgap-Machine van de Beddraaibank,De normale Gap-Machine van de Beddraaibank,CA6240 metaal het Draaien Machine |
||
Productbeschrijving
Hoofd technische parameters
| Model | CA6136/6236 | CA6140/6240 | CA6150/6250 | |
| CAPACITEIT | Max.swing over bed | 360mm | 400mm | 500mm |
| Max.swing over dwarsdia | 190mm | 210mm | 300mm | |
| Max.swing over hiaat | 520mm | 560mm | 660mm | |
| Efficiënte lengte van hiaat | 250mm | |||
| Centrumafstand | 750,1000,1500,2000mm | |||
| Bedbreedte | 360mm | |||
| ASBLOK | Asgat | 52mm | ||
| Asneus | ISO-C6 | |||
| Asversmalling | MT6 | |||
| Assnelheid (Aantal) | (9steps) 40-1400rpm | |||
| Metrische dradenwaaier | 18kinds 0.514mm | |||
| De waaier van duimdraden | 27kinds 2-40inch | |||
| De waaier van Moudledraden | 11 soorten 0.25-3.5mn | |||
| VERVOER | Max.travel van hoogste dia | 95mm | ||
| Max.travel van dwarsdia | 180mm | 230mm | ||
| Max.size van toolshank | 20*20mm | |||
| LOSSE KOP | Dia.of losse kopkoker | 65mm | ||
| Versmalling van losse kopkoker | MT4 | |||
| Max.travel van losse kop | 140mm | |||
| MOTOR | Hoofdaandrijvingsmotor | 4 of 5.5KW | ||
| De motor van de koelmiddelenpomp | 125W | |||
| VERPAKKING (L*W*H): | ||||
| Centrumafstand | 750mm | 225*115*165cm | ||
| 1000mm | 245*115*165cm | |||
| 1500mm | 288*115*165cm | |||
| 2000mm | 338*115*165cm | |||
| GEWICHT (N.W/G.W): | ||||
| Centrumafstand | 750mm | 1350/1750kg | 1400/1800kg | 1500/1900kg |
| 1000mm | 1450/1850kg | 1500/1900kg | 1600/2000kg | |
| 1500mm | 1600/2000kg | 1650/2050kg | 1750/2150kg | |
| 2000mm | 1750/2150kg | 1800/2200kg | ||
Productprestaties
Producthoogtepunten
Het normale metaal die van de de draaibankmachine van het hiaatbed Handdraaibankca6240 metaal het draaien machine verwerken Productinleiding CA6240 de conventionele draaibank kan allerlei ondernemen het draaien van het werk, naast het draaien van binnen en buiten cilindrische oppervlakten, ...
